Plugin Available now

Groundwork

Groundwork puts an AI coworker in a Rhino 8 panel.

Demo, Groundwork in action

What Groundwork does

Groundwork adds a panel to Rhino 8 with an agent that knows Rhino and Grasshopper and acts on the model you already have open. It reads the document, runs Python against it, reads Grasshopper definitions and bakes their geometry, captures viewports, and looks things up in seven bundled reference packs, RhinoCommon, rhinoscriptsyntax, Python for Rhino 8, Grasshopper, drawings, annotation and layouts, import and export, and mass properties, so the code it writes matches the API you are on. It also has seventeen built-in actions for the jobs you do every week. You never go looking for them: you ask in plain language and it runs the right one. They cover health check, purge and clean, organise layers, remove duplicates, fix bad objects, contours, sections, Make2D drawings, viewport packs, export packs, unroll surfaces, mass properties, selection reports, block management, isolate selection, zoom to selection, and a structured Grasshopper bake. Five specialists come with it: a generalist, a modeler, a Grasshopper analyst and a documenter you pick from the rail, and an inspector the assistant calls in when a task needs the model checked. Sessions are named and restorable, and it keeps notes per project once the file is saved. Nothing is billed through us: it works with your own AI provider account, Anthropic, Google Gemini, OpenAI, Ollama Cloud, or a Claude Code sign-in, and Ollama can run on your own machine with no account and no key at all. Your credentials are encrypted locally with Windows DPAPI and go only to the provider you picked, your model and your conversation never pass through us, and there is no telemetry. The only thing that contacts a4a.tools is your licence check.

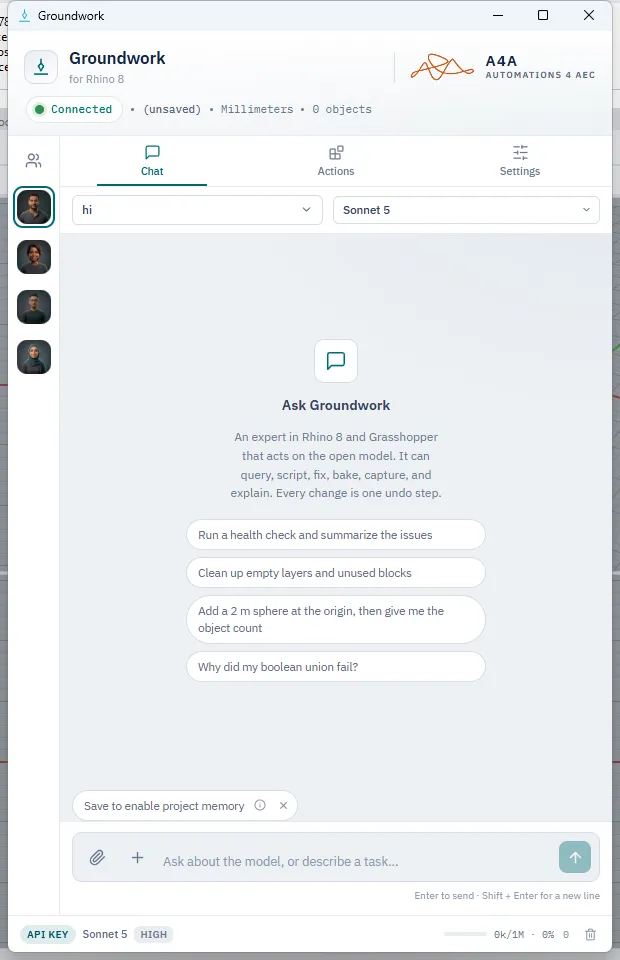

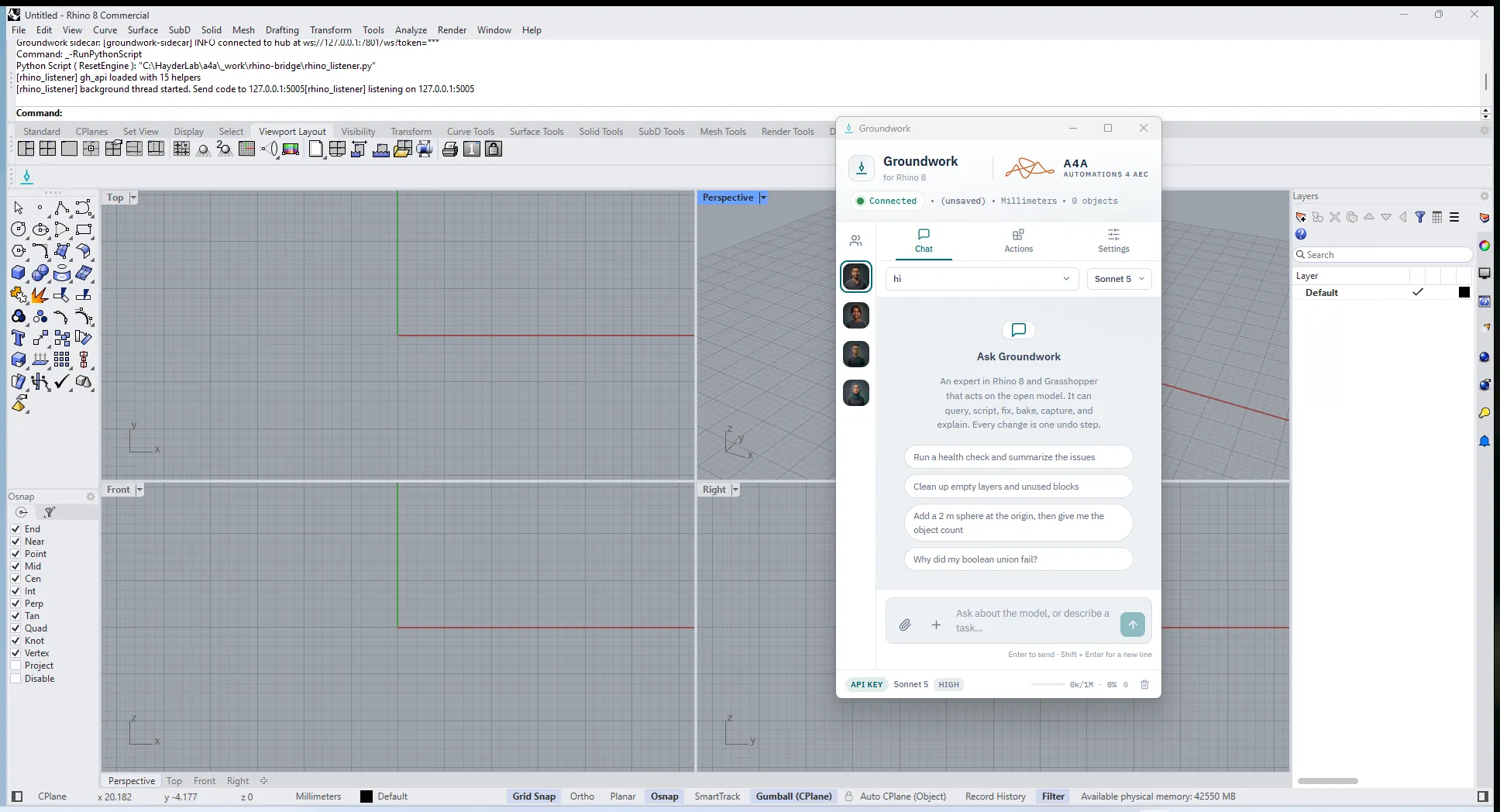

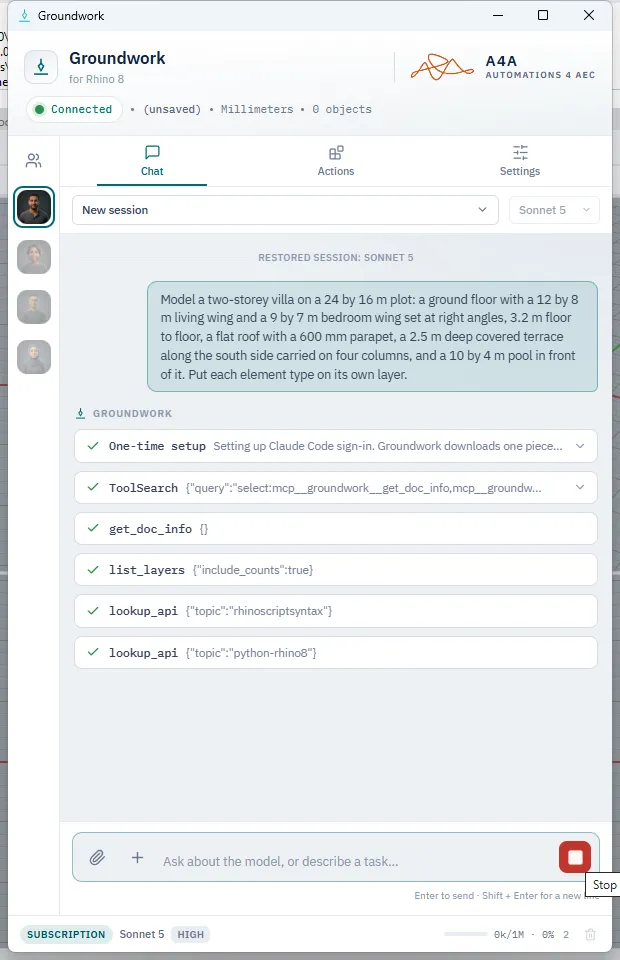

Groundwork screens

  • A gate valve built from one picture in Rhino 8
  • A kitchen island on twelve named layers
  • A brushed brass mixer tap on five named layers
  • A timber gridshell pavilion and its measured form
  • A stacked tower cut through at floor 9

What is included with Groundwork

  • GroundworkSetup-0.14.9.exe: the per-user installer for the Rhino 8 plugin
  • README.txt: the install and first-run guide
  • One-time purchase. You own it, no subscription.

What you are buying with Groundwork

  • You pay once. The licence is permanent, there is no subscription, and it does not expire.
  • A licence is per seat and locked to one computer. Buy the number of seats you need and each one activates on a single machine.
  • Every 1.x update is included. Fixes and new features arrive at no extra cost for the whole of version 1.
  • A future version 2.x will be a separate, paid upgrade. Staying on version 1 stays free for as long as you want it.

How Groundwork works

  1. 01

    Install Node.js 22 or newer if you do not have it: the agent runs as a small local process beside Rhino.

  2. 02

    Unzip the download and run GroundworkSetup-0.14.9.exe, which needs no administrator rights, then start Rhino 8 or restart it if it was already open.

  3. 03

    Run the Groundwork command to open the panel; the light goes green when the agent is live.

  4. 04

    In Settings, pick your AI provider and connect your account.

  5. 05

    Ask in plain language, and the agent calls its seventeen built-in actions for you. Save the .3dm if you want it to remember your conventions.

Groundwork parameters

The sliders and inputs Groundwork exposes.

Parameter Controls
Provider and key Pick your AI provider in Settings: Anthropic, Google Gemini, OpenAI, Ollama Cloud, Ollama on your own computer, or a Claude Code sign-in. Your credentials are encrypted with Windows DPAPI and sent only to that provider
Model Read live from the provider, so new models appear without an update
Effort Low, Med, High or XHigh, next to the model picker
Specialist Generalist, modeler, Grasshopper analyst or documenter, picked from the rail down the left. The inspector is the fifth, and the agent brings it in itself when a task needs the model checked
Sessions Named, restorable, and kept per model, so a thread you left last week comes back with its history
Ask before running On for a new install: Groundwork asks before each step that changes your Rhino 8 model. Turn it off to let it work straight away
Project memory Notes kept per project once the .3dm is saved, so your conventions survive into the next session
Google AI key Used for chat if you pick Google Gemini. With any other provider it is optional and only used by the image-render tool
Usage meter Tokens used against the model’s context window, in the status bar
FAQ

Questions about Groundwork

What do I need besides Rhino?

Node.js 22 or newer on PATH, because the chat agent runs as a small local process that Rhino starts beside itself, and an AI to think with. That can be your own provider account: Anthropic, Google Gemini, OpenAI, Ollama Cloud, or a Claude Code sign-in, or a model running locally on your own machine, which needs no account and no key. Unless Gemini is your provider, a Google AI account is optional and only powers the image-render tool.

Does it ask before it changes my model?

Yes, on a new install. Ask before running starts switched on, so Groundwork waits for your approval before each step that changes your Rhino 8 model. You can turn it off in Settings to let it work straight away. Either way, every task lands as a single named undo step, so one Ctrl+Z takes it back.

How is it delivered?

As a zip holding two files: the installer, GroundworkSetup-0.14.9.exe, and the install guide. Run the installer, which needs no administrator rights, then start Rhino 8, or restart it if it was already open, and run the Groundwork command. Your download link arrives by email after purchase.

Where does my data go?

Your credentials are encrypted on your own machine with Windows DPAPI and sent only to the provider you picked. Your model and your conversation never pass through us: there is no Groundwork server in the chat path, and no telemetry, no analytics and no crash reporting anywhere in the product. The one thing that does contact us is your licence: activating, moving or revalidating a seat sends your activation code and an anonymous machine fingerprint to a4a.tools, and nothing else. The agent reads the model you have open in order to work on it, so what you send to your provider is what a request needs.

Does it replace Grasshopper?

No. It works with Rhino 8 and Grasshopper as you already use them. It can read the definition you have open and bake its geometry into Rhino 8, rather than standing in for either.

Does it work on Rhino 9?

No. Groundwork is built for Rhino 8 and does not load in Rhino 9. If you are on the Rhino 9 beta, stay on Rhino 8 for this plugin.

Is there a Mac version?

Not in this release. Groundwork is Windows-only for now.
